Kia Cee'd: Storage compartment / Luggage side tray
■ 3 Door and 5 Door
■ Wagon

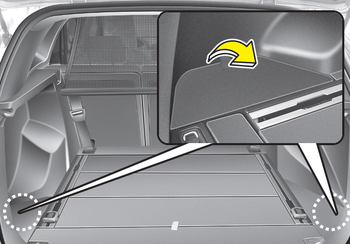

The luggage side tray can be used for storing small items.
To open the cover, pull up the handle and lift the cover.

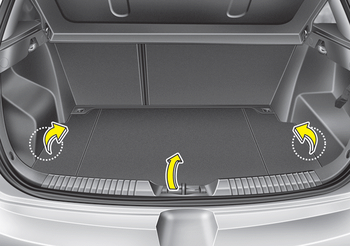

Luggage tray (wagon)
You can place a first aid kit, a reflector triangle
(front tray), tools, etc. in the box for
easy access.
Grasp the handle on the top of the cover
and lift it. ...
