Kia Cee'd: Lubrication System / Oil Pump Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Lubrication System / Oil Pump Components and components location

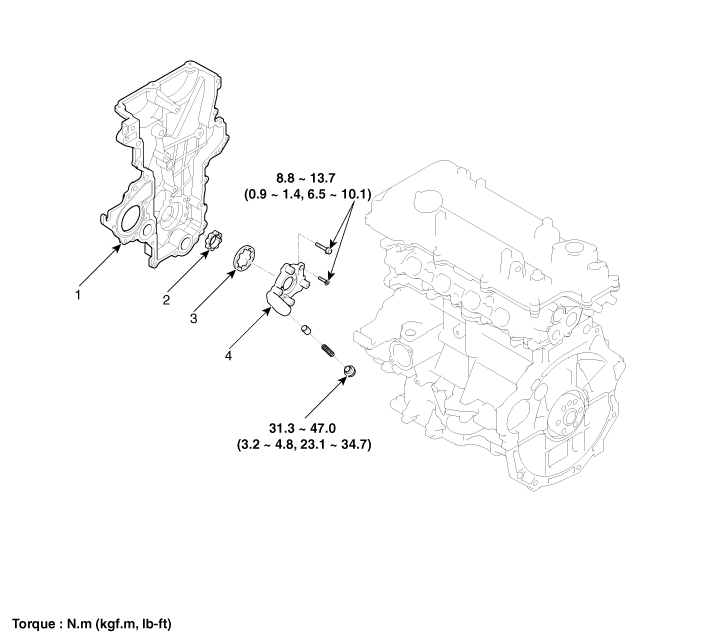

Components

1. Timing chain cover
2. Inner rotor

3. Outer rotor
4. Pump cover

Engine Oil Repair procedures

Replacement • Prolonged and repeated contact with mineral oil will result in t ...

Oil Pump Repair procedures

Removal and Installation 1. Remove the timing chain cover. (Refer to Timing System - "Timing Chain Cover") 2. Remove ...
